Sodium Bicarbonate Based Dry Sorbent Injection Solutions

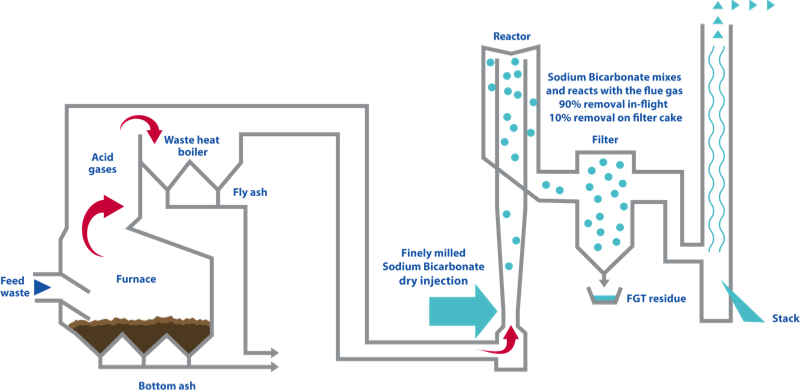

Sodium Bicarbonate Reactor+Filter Scrubbing System Schematic

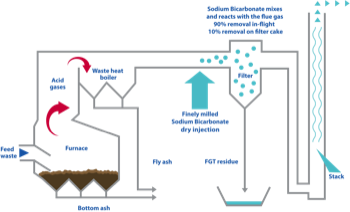

Sodium Bicarbonate or Trona Dry Injection System Schematic
SEM Photos of Unreacted and Reacted SBC
Hydrated Lime Based Dry Sorbent Injection Solutions

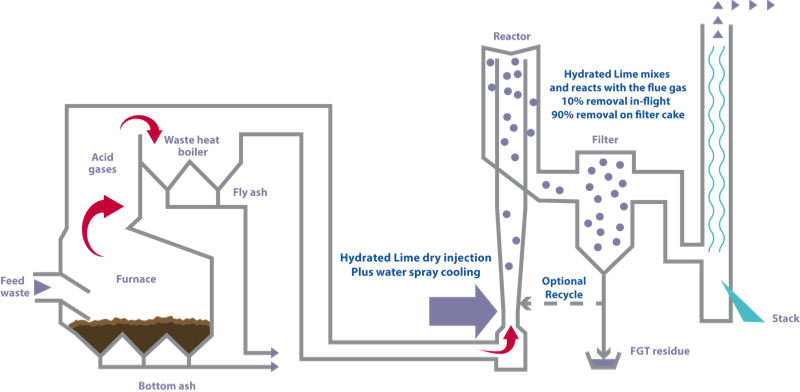

Hydrated Lime Reactor+Filter Scrubbing System Schematic

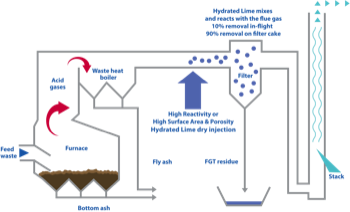

Sodium Bicarbonate or Trona Dry Injection System Schematic
Comparison of Sorbent Used
and Waste Generated
for Sodium Bicarbonate vs. Hydrated Lime
Advanced DSI Dry Scrubbing Solutions
STM EcoSystems designs and supplies complete, high-performance dry acid gas scrubbing solutions for the following industries:
POWER • INCINERATION • CEMENT • LIME • FOUNDRIES • STEEL • METALS • GLASS
STM can provide smart components and engineering and application assistance to OEMs that sell integrated solutions to their customers.
Efficiencies of Different Applications
- Reactor-based Sodium Injection
Efficiency: 99.9%
- In-Duct Sodium Injection
Efficiency: 90.0%
- Reactor-based Hydrated Lime Injection
Efficiency: 95.0%
- In-Duct Hydrated Lime Injection
Efficiency: 80.0%
- Spray Cooling Tower-based Dry Hydrated Lime Injection
Efficiency: 95.0%
- Hybrid Wet/Dry Hydrated Lime Injection*
Efficiency: 95.0%
*The patented, hybrid dry/semi-dry calcium-based system does away with all the problems of traditional slurry systems by eliminating slurry transfer pumps, tanks and instrumentation, resulting in an extremely low maintenance system that is truly simple! Injected in a once-through spray tower where the slurry is sprayed through two-fluid spray lances, and comes into contact with the gas stream, neutralizing the acid gas component of the gas stream at high efficiencies. The system can be used in all-dry mode during periods requiring lower injection rates and can be seamlessly switched to semi-dry mode on the fly when the process requires higher reduction efficiencies. This is particularly well suited to processes like cement, where there is an increased need for hydrated lime injection rates during mill-off (direct operation).
